EPS Motor Removal and Installation

EPS Motor Removal and Installation

Removal

Note these items during removal:

The illustration shows RHD type, LHD type is symmetrical.
Do not allow dust, dirt, or other foreign materials to enter the gearbox.

1.	Remove the steering gearbox.

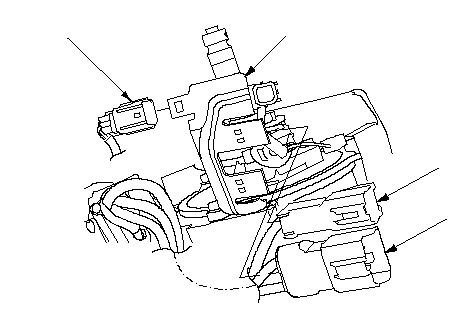

2.	RHD type: Remove the motor-angle sensor 6P connector (A) motor 1P connector (B), and motor 2P connector (C) from the connector bracket (D).

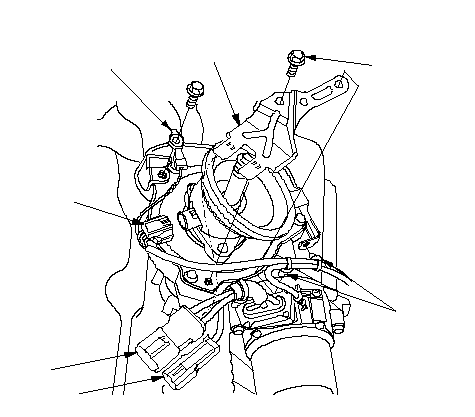

3.	LHD type: Disconnect the torque sensor 3P connector (A), then remove the ground terminal (B).

4.	LHD type: Remove the connector bracket (C) from top of the torque sensor.

5.	LHD type: Remove the harness clips (D), motor 2P connector (E), motor 1P connector (F) from the connector bracket.

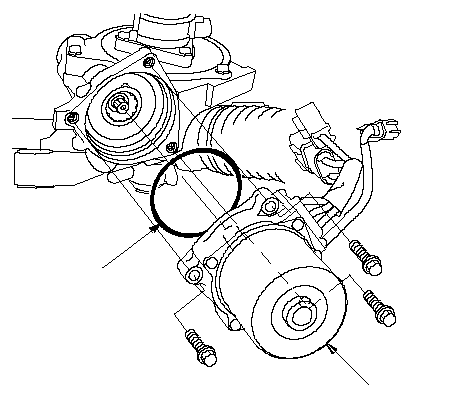

6.	Remove the motor (A) from the steering gearbox, then remove the O-ring (B) and discard it.

Installation

1.	Clean the mating surface of the motor (A) and the gearbox.

2.	Apply a thin coat of silicone grease to the new O-ring (B), and carefully fit it on the motor.

3.	Apply silicone grease into the motor shaft (C).

4.	Install the motor on the gearbox by engaging the motor shaft and the worm shaft (D).

5.	Before tightening the bolts, turn the motor two or three times to the right and left about 45 degrees. Make sure the motor is evenly seated on the steering gearbox, and that the O-ring is not pinched between the mating surfaces.

6.	Install the removed parts in the reverse order of removal, and note these items: Make sure the motor 2P connector and torque sensor 3P connector are properly connected. Make sure the motor and EPS wires are not caught or pinched by any parts.

7.	Reconnect the negative cable to the battery.

8.	After installation, start the engine, and let it idle. Turn the steering wheel from lock-to-lock several times. Check that the EPS indicator does not come on.
