Interior Trim Removal/Installation - Rear Door Area
Rear Door Sill Area
NOTE:
Put on gloves to protect your hands.
Take care not to bend or scratch the trim and panels.
When removing components, use the trim tools or equivalent.

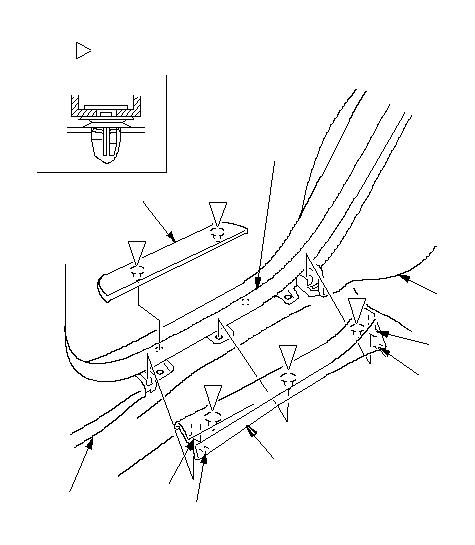

1.
Remove the rear door sill inner trim (A).
-1
Disengage the hooks (B) and tabs (C) from the center pillar lower trim (D) and trunk side trim panel (E).
-2
Detach the clips (F), then remove the trim from the rear door inner seal (G).
-3
If necessary, detach the clips (H) by pulling the rear door sill outer trim (I) up, then remove it.
2.

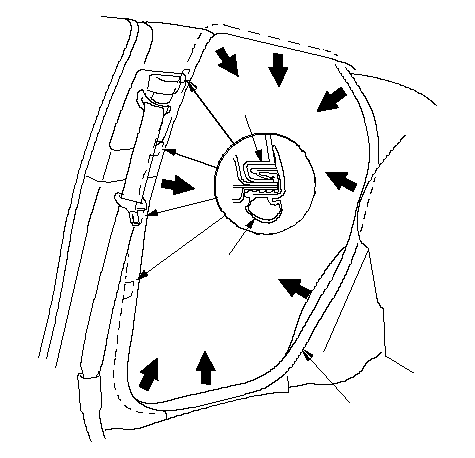

Pull out the rear door inner seal (A) from the trim hooks (B) and around the front door opening flange, then remove the seal.
3.
Install the trim in the reverse order of removal, and note these items:
Check for damaged or stress-whitened clips, and if necessary, replace them with new ones.
Push the clips and hooks into place securely.
