EVAP Canister Purge Valve Replacement

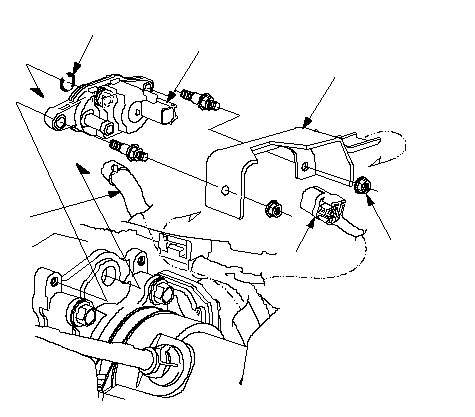

1.Disconnect the hose (A) and the EVAP canister purge valve 2P connector (B).




ABCDE6 N·m
(0.6 kgf·m,
4 lbf·ft)

2.Remove the EVAP canister purge valve stay (C) and the EVAP canister purge valve (D).

3.Install the valve in the reverse order of removal with a new O-ring (E).
