Accelerator Pedal Module Removal/Installation

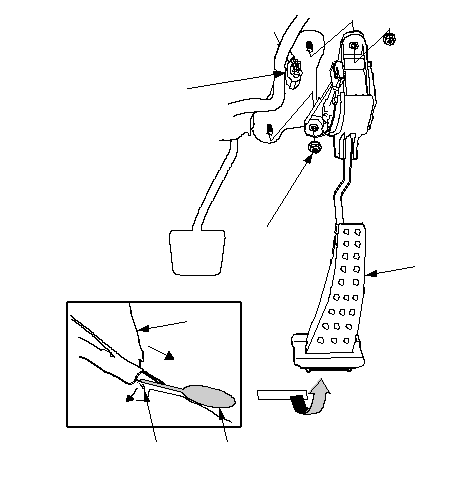

1.Disconnect the accelerator pedal module connector (A).




A13 N·m
(1.3 kgf·m,
9.4 lbf·ft)
*: This illustration shows RHD model.BACC

2.Using flat-tip screwdriver (A), push the lock plate (B), then remove the accelerator pedal module (C).

NOTE: APP sensor is not available separately. Do not disassemble the accelerator pedal module.

3.Install the accelerator pedal module in the reverse order of removal.
