8 x 1.25 mm
24 N·m
(2.4 kgf·m, 17 lbf·ft)
10 x 1.25 mm
44 N·m
(4.5 kgf·m, 33 lbf·ft)

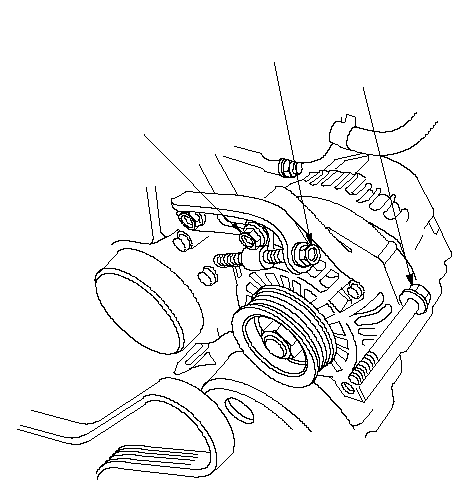

| 1. | Loosen the lock bolt (A), mounting bolt (B) and adjusting bolt (C), then remove the drive belt.
8 x 1.25 mm 24 N·m (2.4 kgf·m, 17 lbf·ft) 10 x 1.25 mm 44 N·m (4.5 kgf·m, 33 lbf·ft) |
| 2. | Loosely install the drive belt, then adjust the belt tension. |
